6 Pin Cable-to-strip Connector for 12mm LED SMD Strip 12V-24V RGB+CCT IP20

Original price £1.76 - Original price £1.76
Original price
£1.76
£1.76 - £1.76
Current price £1.76

VAT included

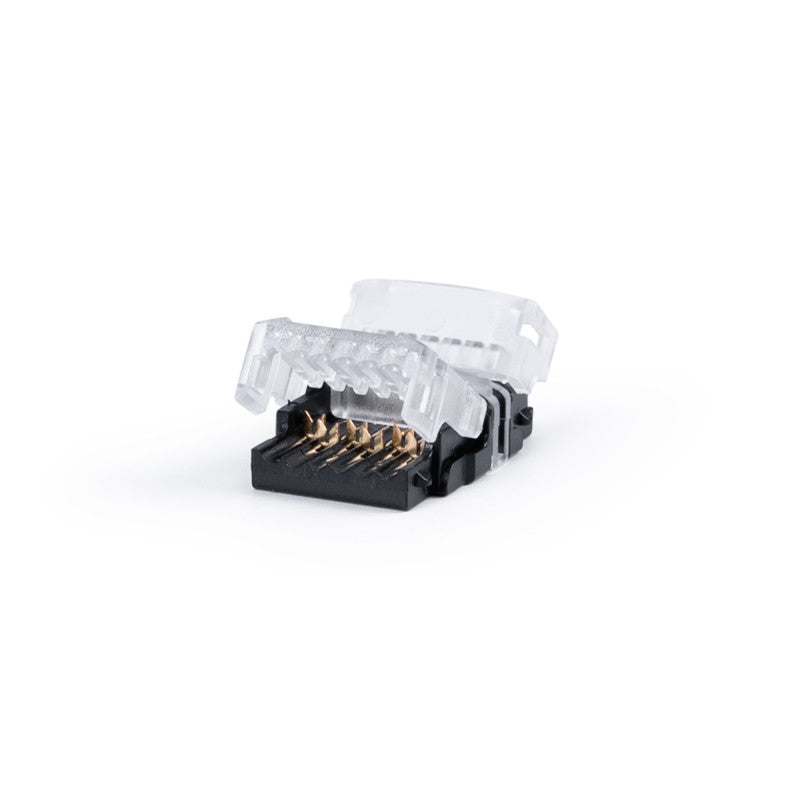

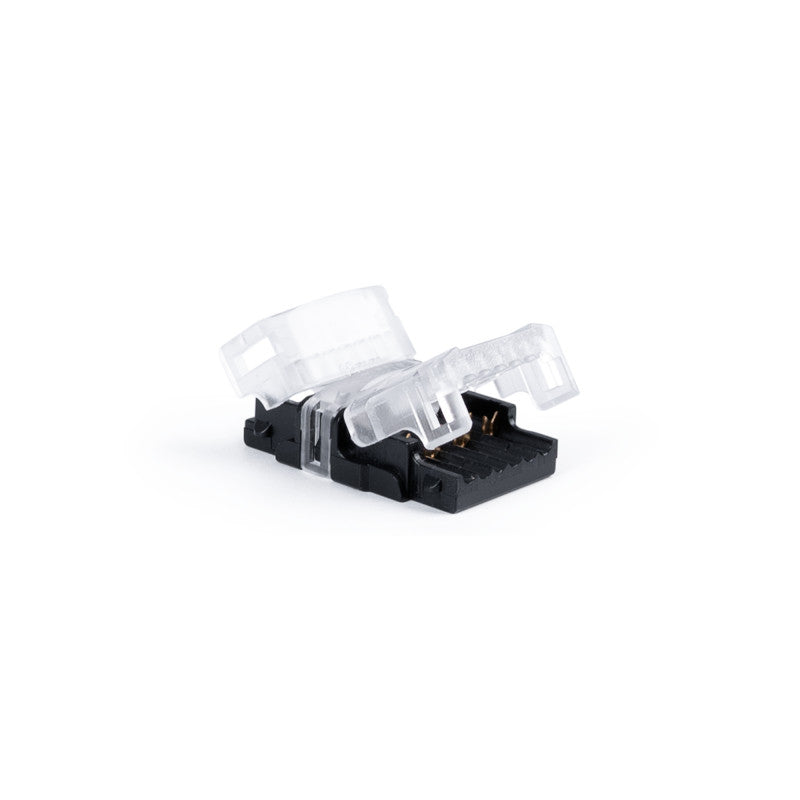

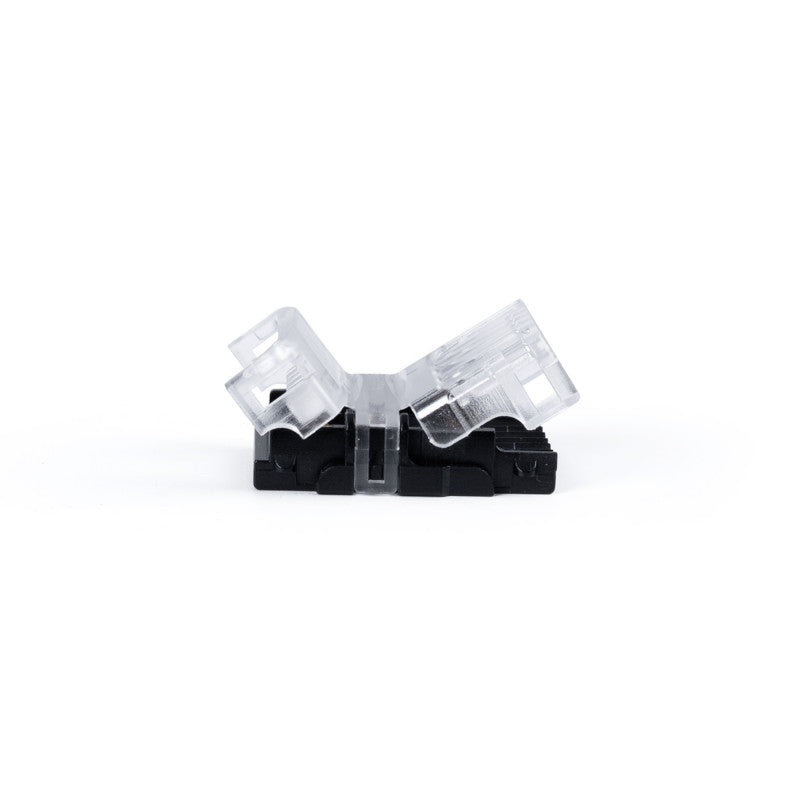

The HIPPO quick connector is a practical and reliable solution for connecting LED strips directly to cables without soldering. Designed specifically for RGB+CCT SMD LED strips with a 12 mm PCB, it ensures a secure and stable connection for low-voltage lighting installations.

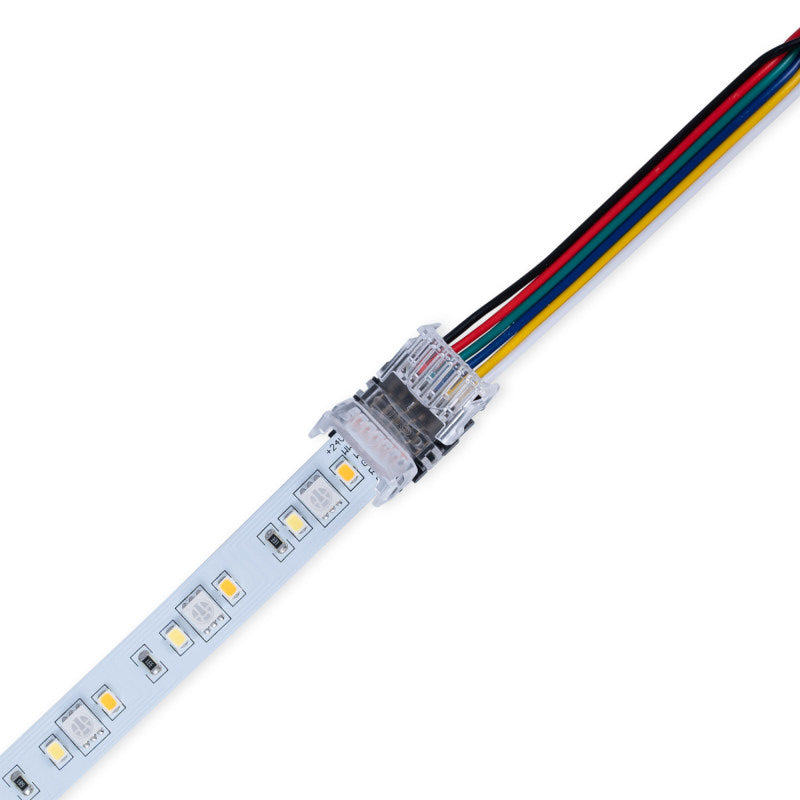

This 6-pin connector supports operating voltages from 3V to 24V DC and a maximum current of 3.5A, making it suitable for a wide range of RGB+CCT LED strip applications. Installation is fast and simple: insert the LED strip into the connector terminals, connect the wires on the opposite side, and gently close the caps until they click into place.
Manufactured from durable polycarbonate and rated IP20, this connector is intended for indoor use only. Certified to CE and RoHS standards, the HIPPO connector provides a safe, efficient, and long-lasting connection, backed by a 3-year warranty.

Technical specifications

Product type: Quick connector, strip to cable

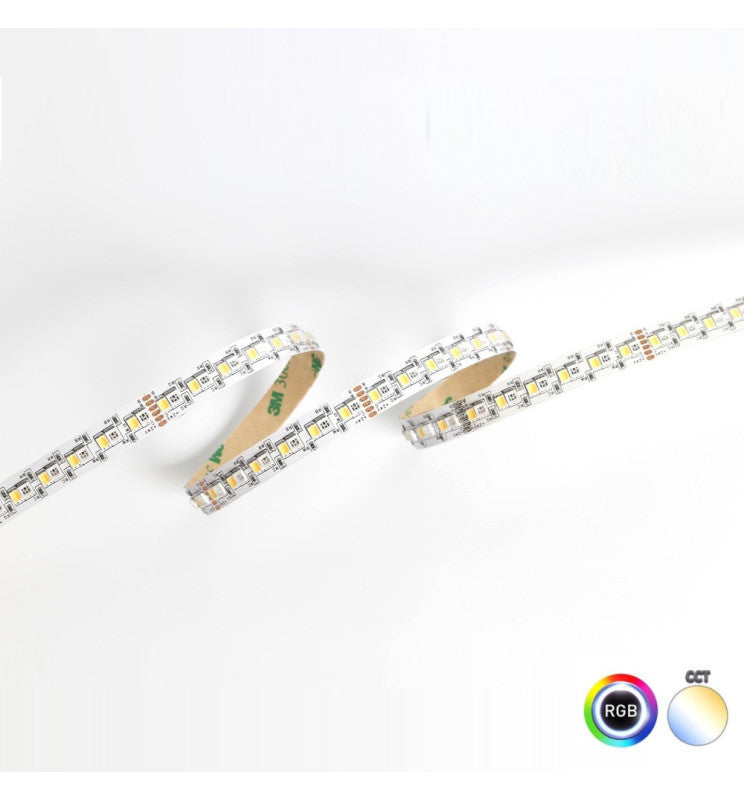

Compatibility: RGB+CCT SMD LED strips
PCB width: 12 mm
Number of pins: 6
Nominal voltage: 3–24 V DC
Maximum current: 3.5 A
Supported wire gauge: 22 AWG / 0.32 mm²
Material: Polycarbonate

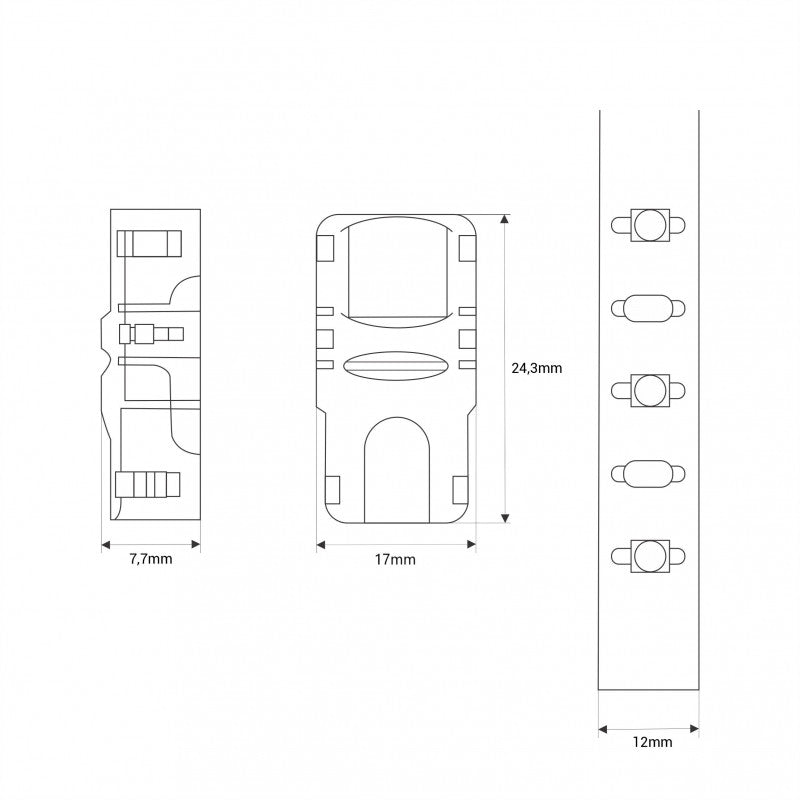

Dimensions (L × W × H): 24.3 × 17 × 7.7 mm
IP rating: IP20 (indoor use only)
Certifications: CE, RoHS
Warranty: 3 years

Availability:
46 in stock, ready to be shipped
