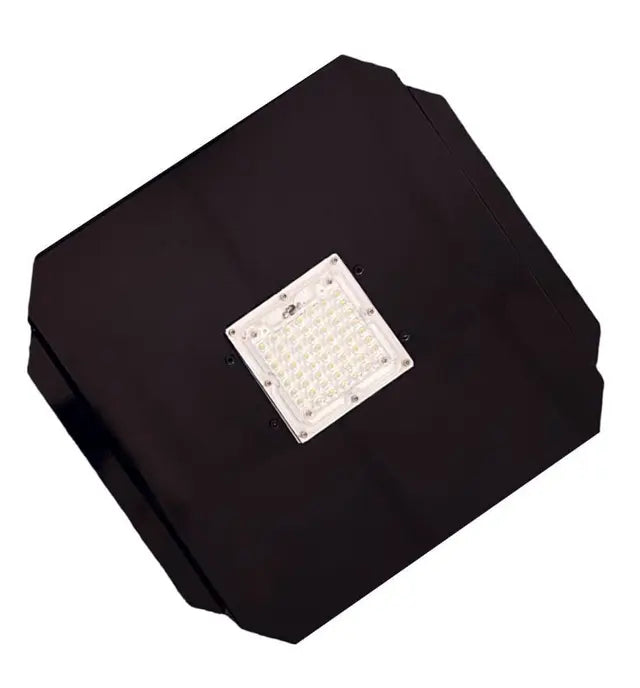

40W Module LED Street Light Bridgelux + Steel plate

Name: 40W Module LED Street Light Bridgelux + Steel plate
Brand: FactorLED
SKU: LM40WKIT-4K
Price: 98.3 GBP
Availability: OutOfStock

Sold out

£98.30 - £98.30

£98.30

£98.30 - £98.30

£98.30

VAT included

High-performance LED optical block engineered for professional street lighting applications. This 40W module features 54 Bridgelux 2240 DS-C30 4-core SMD 3030 LEDs, delivering efficient illumination with exceptional light output and uniformity.

Built for durability and longevity, the module incorporates superior thermal dissipation that reduces operating temperatures and extends operational lifespan. The 1.2mm baked-on polyester paint steel plate provides corrosion resistance and structural integrity in outdoor environments, ensuring reliable performance in demanding conditions.

Optimized energy efficiency minimizes power consumption without compromising brightness, making it an economical choice for street lighting installations. Suitable for retrofit projects, new installations, and commercial outdoor lighting systems where reliability and performance are essential.

Technical specifications

Rated Power: 40W
Nominal Voltage: AC85-265V
Colour: 4000K
CRI - Chromatic Rendiment Index: 70
Energy Rating (2021-UE-2019/2015): A+
Luminous diodo LED (Lm/W): 160 Lm/W
Luminous Efficiency (Lm/W): 135 Lm/W
Certifications: CE, RoHS
IP Rating: IP68-Outdoor
Diode Life Expectancy (H): 40000h
Power Factor (PF): 0.95
Frequency (Hz): 50/60Hz
Temperature Range (ºC): -15ºC ~ +70ºC
On/Off Cycles: 100.000h
Starting Time (s): 0,2s
Construction Material: Aluminium +PMMA
Impact Protection (IK): IK10
Driver included: YES
Warranty Years: 5
Luminosity-Lm: 5400Lm
Number & Type of LEDs: SMD 3030 4 Cores Bridgelux Chip 2240 DS-C30
Beam Angle (º): 80º - 150º
Dimensions (mm): 380x330xH60mm
Other Information:Driver: 23-43VDC- 1000mA+-5%

Availability:

Out of stock

FOR B2B PRICE, PLEASE LOG IN OR APPLY TO BECOME A PARTNER
