VERSA WHITE Connector LED module 3CCT

Original price £80.71 - Original price £91.31
Original price
£88.39
£80.71 - £91.31
Current price £88.39

VAT included

A surface or pendant-mounted connector module that joins the light line at a junction while staying lit through the join.

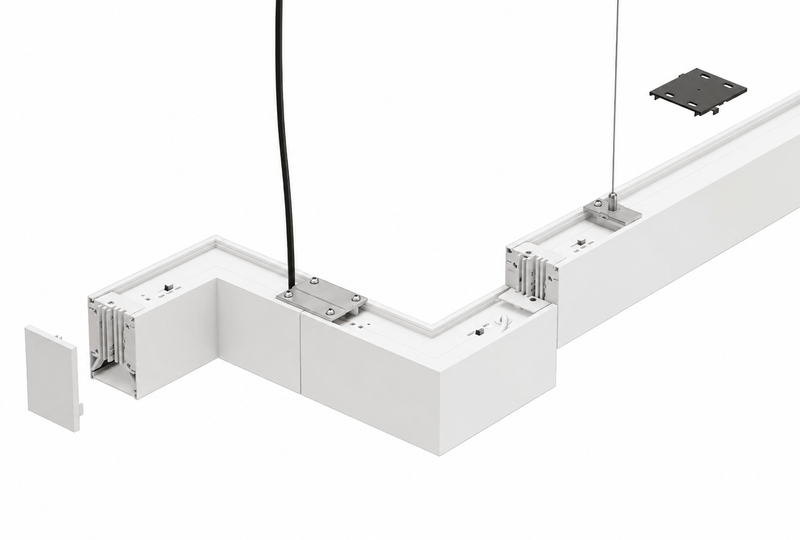

Modules join with a single click — no tools, no dismantling, no fuss. Even at a branch or meeting point the connection is invisible, so the run reads as one unbroken line rather than a dark break where sections meet.

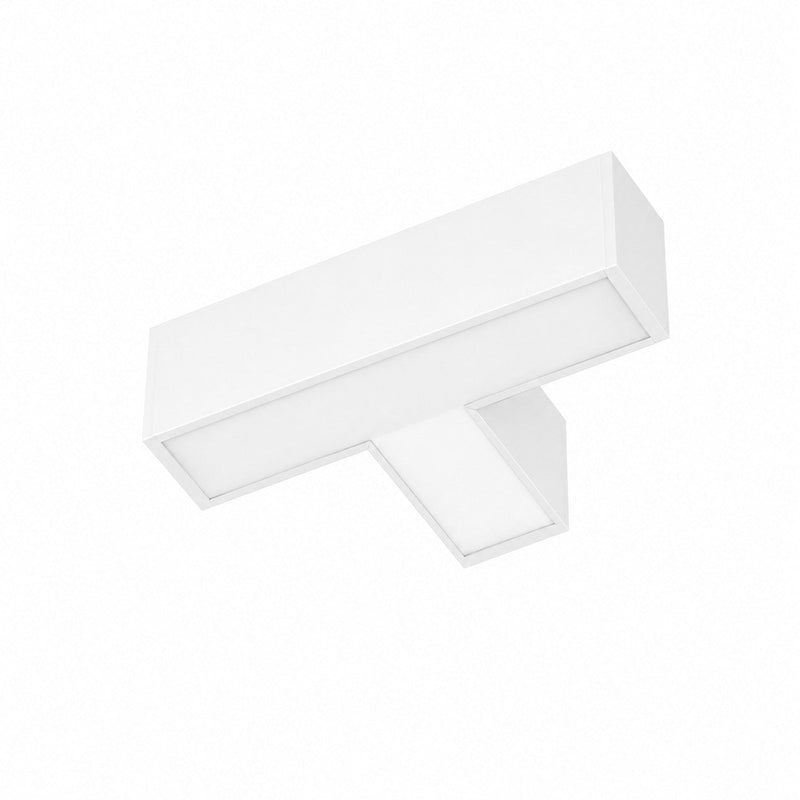

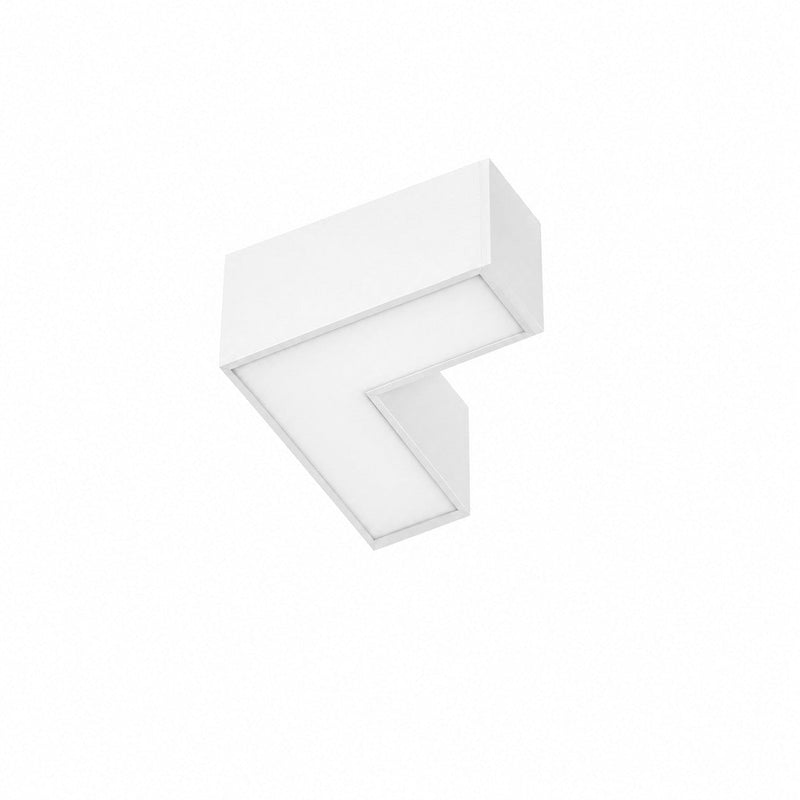

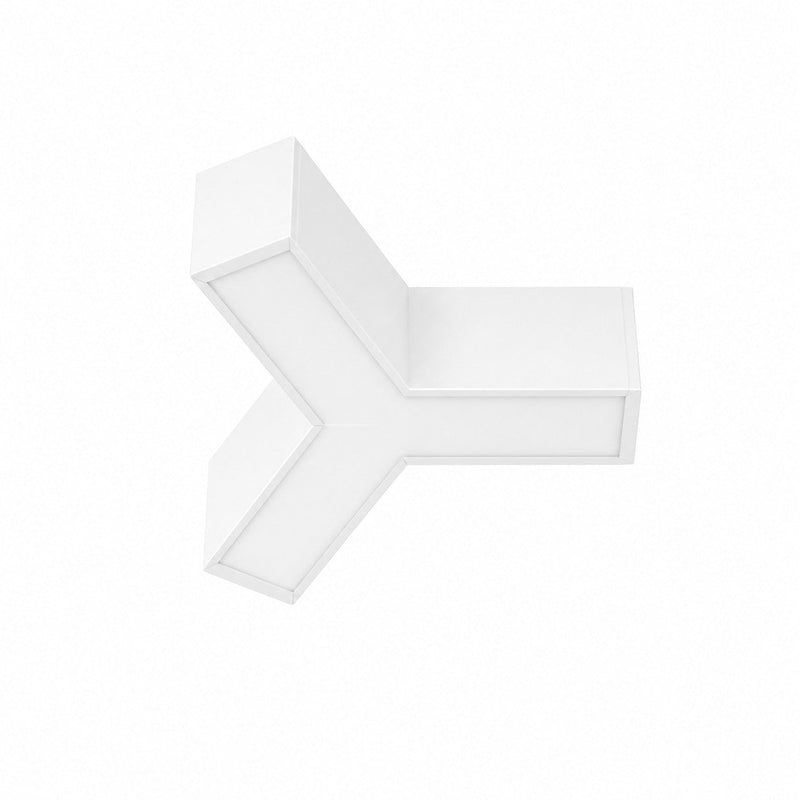

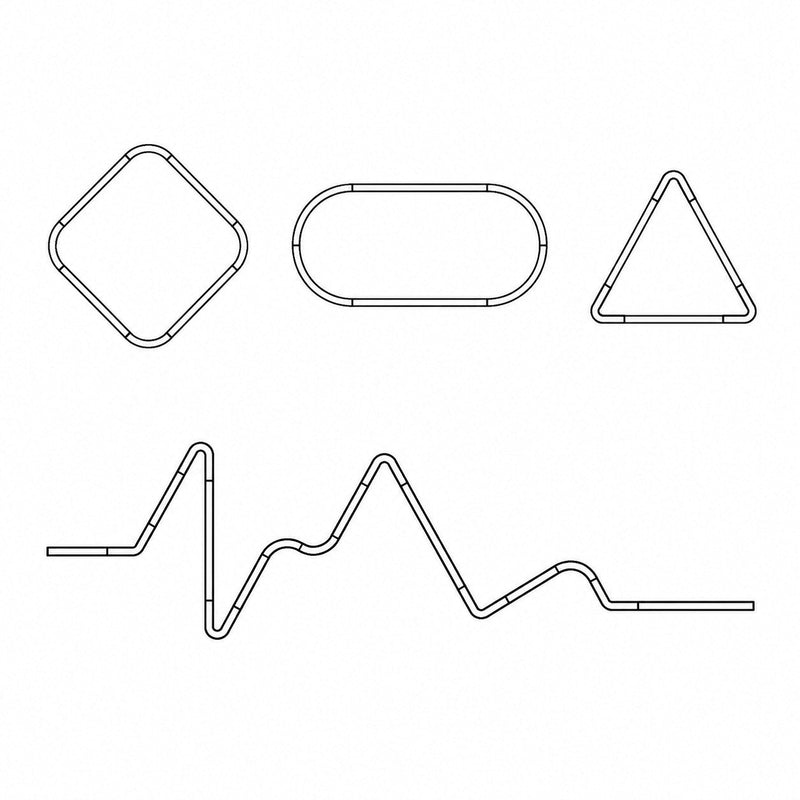

Available in three configurations — T, L and Y — the connectors let a multi-directional layout stay fully illuminated throughout, whether the line branches, turns or splits three ways.

Selectable CCT lets you set 3000K, 4000K or 5700K on site from a single stocked product — one SKU covers warm, neutral and daylight, with no need to second-guess the spec at order stage. A wide 110° beam gives even, comfortable illumination across the space, and a rated life of 50,000 hours keeps maintenance and replacement to a minimum.

This is a project-orientated system. For larger orders, request a quotation — or contact us for a consultation and we’ll help you plan the run.

Technical specifications

• Selectable CCT: 3000K / 4000K / 5700K
• CRI: >80
• Beam angle: 110°
• LED lifespan: 50,000 hours
• Input voltage: 220–240V
• Power supply: included
• Control: On/Off (DALI version available on request)
• Aluminium body, matt finish
• Opal PC diffuser

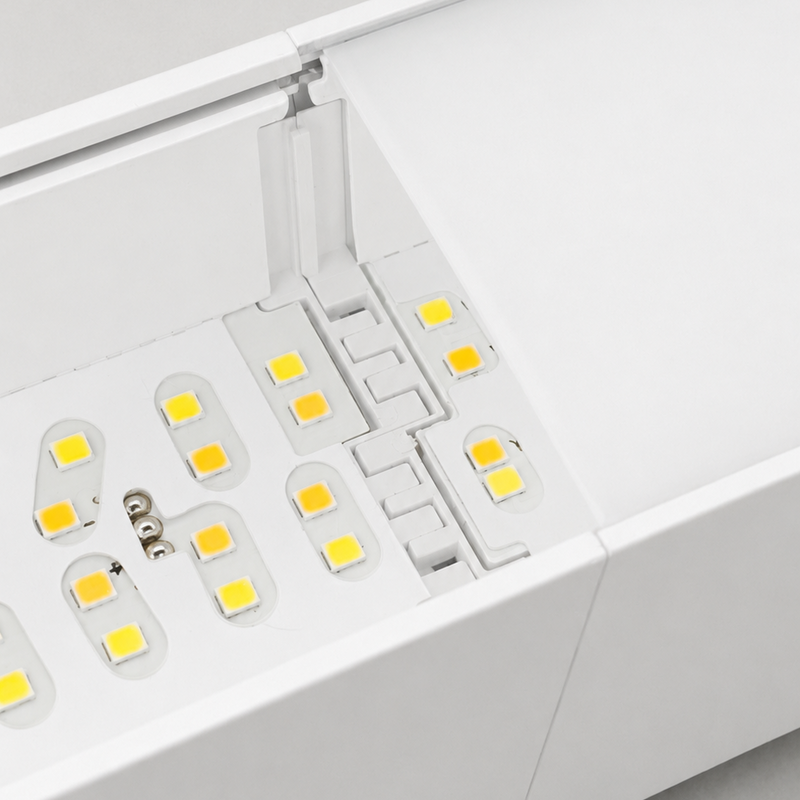

• Invisible, tool-free module-to-module connection
• Mounting: surface or pendant

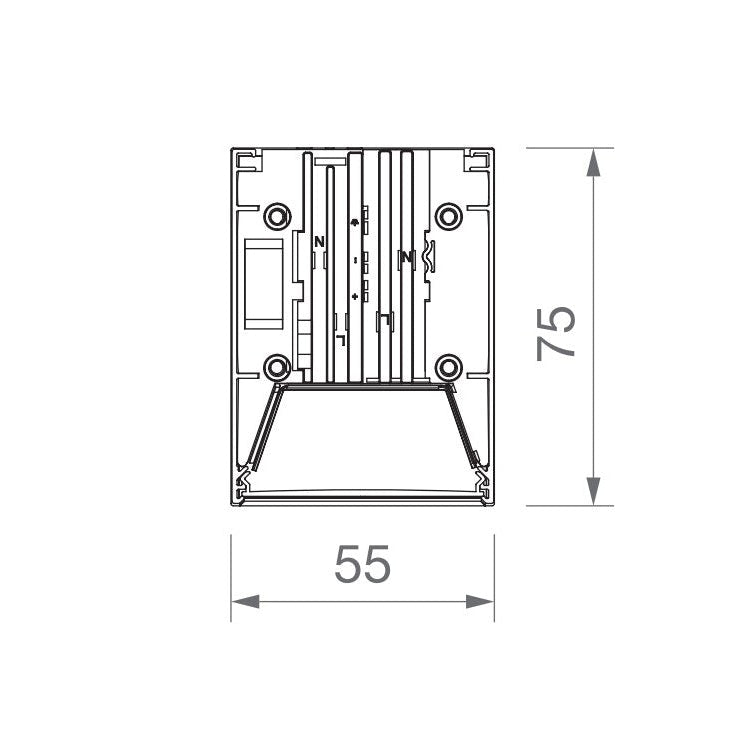

• Profile: 55mm wide × 75mm tall
• In the box: individually boxed, with two end caps fitted (suspension kit and safety joint not included as standard — request with order if required)
Power and output by type:

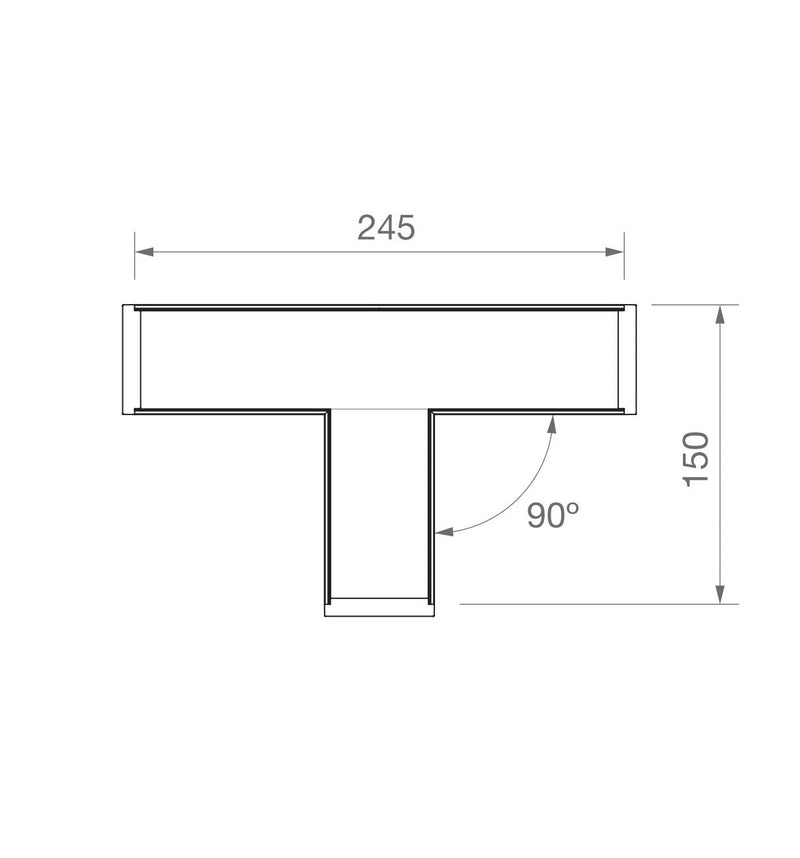

T-shape: 12W; 1120 lm (3000K); 1225 lm(4000K); 1190 lm (5700K)

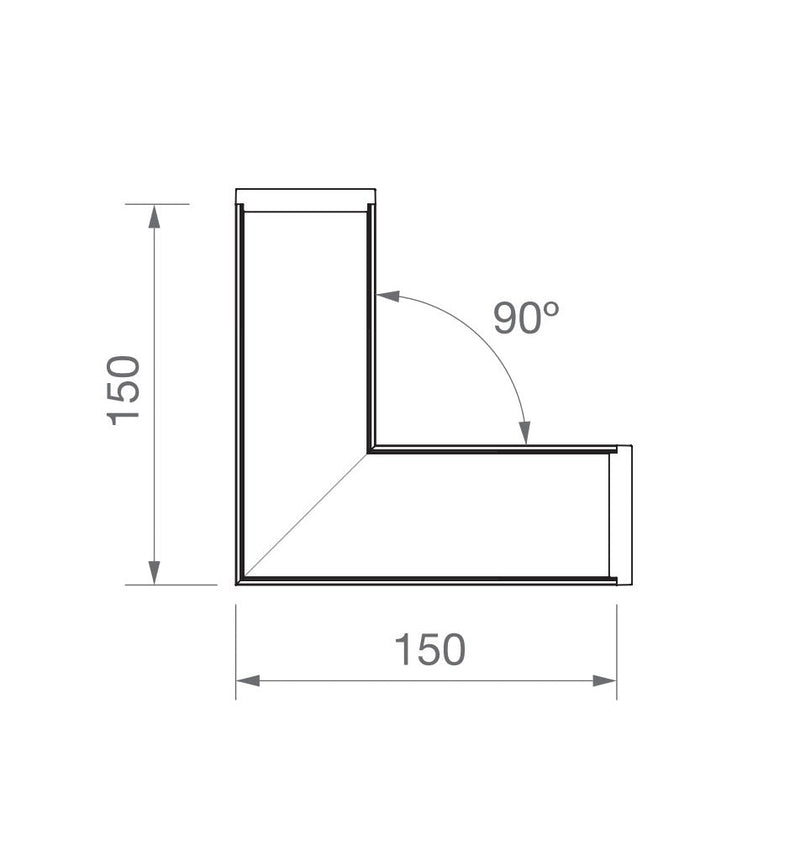

L-shape: 10W; 995 lm (3000K); 1101 lm (4000K); 1059 lm (5700K)

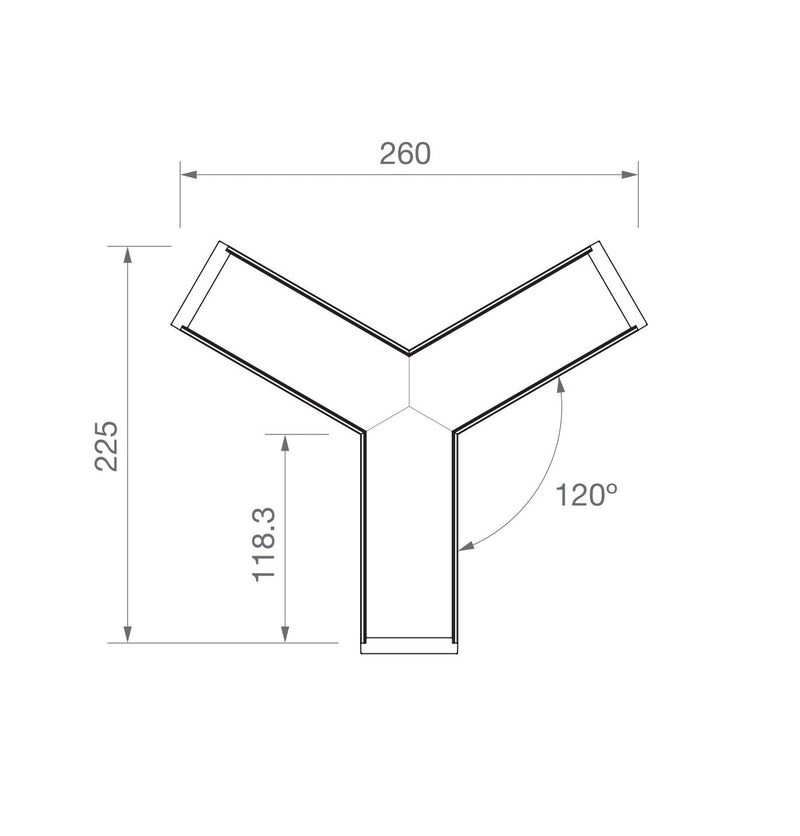

Y-shape: 12W; 1346 lm (3000K); 1465 lm (4000K); 1429 lm (5700K)

Installation note: for continuous runs longer than 15 metres, a new power feed must be introduced to maintain consistent illumination and prevent voltage drop. Plates, suspension kits and cables must be properly secured. End caps protect the click connector during transit and handling — retain them for the open ends of the run and remove where modules join.

Availability:
Out of stock
Availability:
100 in stock, ready to be shipped
Availability:
Out of stock
Availability:
100 in stock, ready to be shipped
Availability:
Out of stock
Availability:
100 in stock, ready to be shipped

FOR B2B PRICE, PLEASE LOG IN OR APPLY TO BECOME A PARTNER
